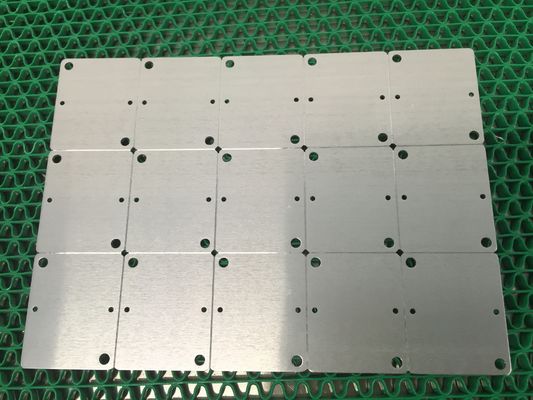

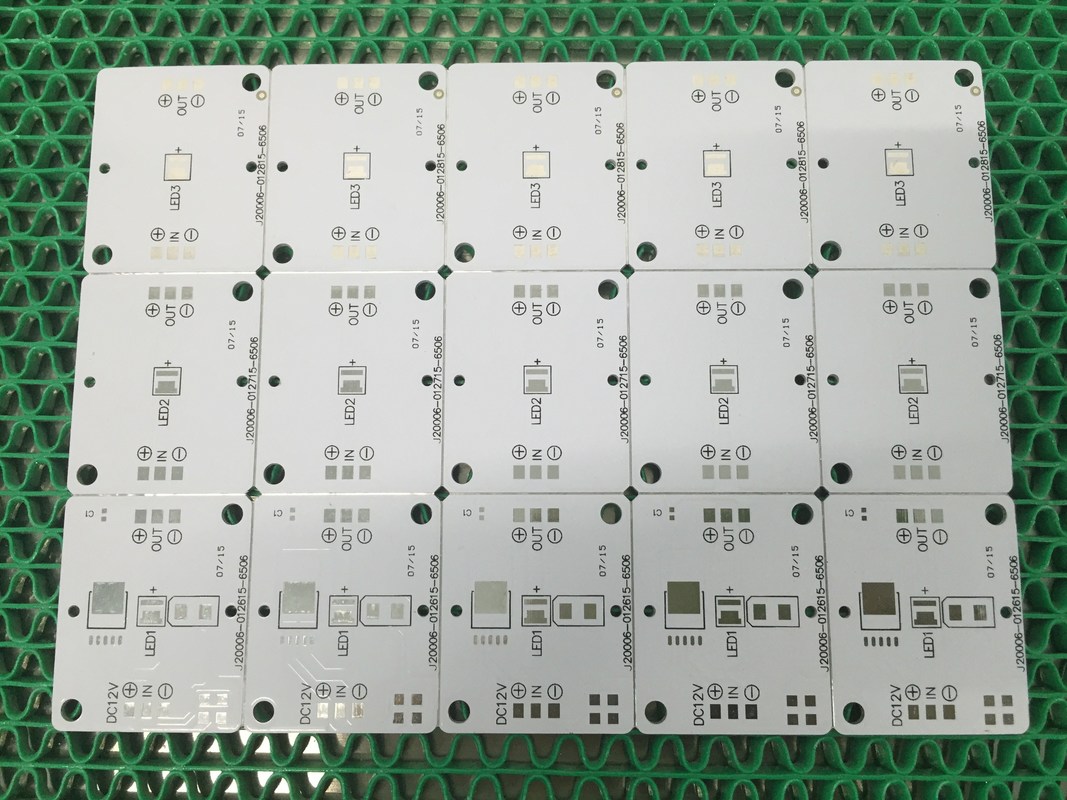

Super Bright High Power LED PCB , Aluminum PCB Board For LED

Super Bright High Power LED PCB , Aluminum PCB Board For LED
Super Bright High Power LED PCB , Aluminum PCB Board For LED Super Bright High Power LED PCB , Aluminum PCB Board For LED

Large Image :  Super Bright High Power LED PCB , Aluminum PCB Board For LED

Product Details:

Place of Origin: China
Brand Name: JHD PCB
Certification: UL,RoHs,SGS,ISO9001-2008
Model Number: JHD-PH-3018

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Price: US$0.1-US$4.99
Packaging Details: Vacuum in Carton
Delivery Time: 7-10 days
Payment Terms: T/T, Western Union
Supply Ability: 30000 square meters per month
Detailed Product Description
High Light:

high power pcb

,

Metal Clad PCB



Super Bright High Power LED PCB , Aluminum PCB Board For LED





JHD PCB



JHD PCB is a prefessioal pcb & pcba manufacturer with more than 6 years' export experience. Located in Shenzhen, China. We have skilled pcb engineers and enthusiastic, positive staffs for production line. All of our printed circuit boards are customized.





Technical Specification For PCB

Number of Layer 1,2,4 or 6,upto 18 layer
Order Quantity 1 to 50,000
Board Shape Retangular,round,slots,cutouts,complex,irregular
Board Type Rigid, Flexible, Rigid-flexible
Board Material FR-4 glass epoxy, FR-4 high Tg, Rohs compliant,Aluminum,Rogers,etc.
Board Cutting Shear,V-score,Tab-routed
Board Thickness 0.2-4.0mm, Flex 0.01-0.25mm
Copper Weight 1.0, 1.5, 2.0 oz
Solder Mask Double-sided green LPI,Also support Red,White,Yellow,Blue,Black
Silk Screen Double-sided or single-sided in white,yellow,black,or negative
Silk Screen Min Line Width 0.006'' or 0.15mm
Max Board Dimensions 20 inch*20inch or 500mm*500mm
Min Trace/Gap 0.10mm, or 4mils
Min Drill Hole Diameter 0.01'',0.25mm, or 10mils
Surface Finish HASL,Nickle,Immersion Gold,Immersion Tin,Immersion Silver,OSP,etc.
Board Thickness Tolerance ±10%
Copper Weight Tolerance ± 0.25 oz
Minimal Slot Width 0.12'', 3.0mm, or 120mils
V-Score Depth 20-25% of board thickness
Design File Formate Gerber RS-274,274D,Eagle and AutoCAD's DXF,DWG







We perform multiple quality assuring procedures before shipping out any PCB board

---These include:

 * Visual Inspection

 * Flying probe

 * Bed of nails

·* Impedance control

·* Solder-ability detection

 * Digital metallograghic microscope

·*AOI (Automated Optical Inspection)



Detailed Terms for PCB Manufacturing

---Technical requirement for pcb assembly:

 * Professional Surface-mounting and Through-hole soldering Technology

 * Various sizes like 1206,0805,0603 components SMT technology

 * ICT(In Circuit Test),FCT(Functional Circuit Test) technology.

 * PCB Assembly With UL,CE,FCC,Rohs Approval

 * Nitrogen gas reflow soldering technology for SMT.

 * High Standard SMT&Solder Assembly Line

 * High density interconnected board placement technology capacity.





PCB Assembly Capabilities

Quantity Prototype&Low Volume PCB Assembly,from 1 Board to 250,is specialty,or up to 1000
Type of Assembly SMT,Thru-hole
Solder Type Water Soluble Solder Paste,Leaded and Lead-Free
Components

Passive Down to 0201 size

BGA and VFBGA

Leadless Chip Carriers/CSP

Double-sided SMT Assembly

Fine Pitch to 0.8mils

BGA Repair and Reball

Part Removal and Replacement

Bare Board Size

Smallest:0.25*0.25 inches

Largest:20*20 inches

File Formate

Bill of Materials

Gerber files

Pick-N-Place file

Types of Service Turn-key,partial turn-key or consignment
Component packaging Cut Tape,Tube,Reels,Loose Parts
Turn Time Same day service to 15 days service
Testing Flying Probe Test,X-ray Inspection AOI Test
PCB assembly process

Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing





We are able to provide you best electronics services:

  • PCB Production Service. (FR-4,HI-TG,Aluminum,FPC,TEFLON,CEM-1 )
  • FPC,PCB Copy Service.
  • PCB Assembly Service. (SMT, BGA, DIP)
  • IC program with HEX file.
  • PCBA Housing assembly serivce.
  • PCBA Final Functional Testing.
  • PCBA Copy Service.
  • Electronic Components Purchasing & BOM List Purchasing Services.
  • PCB SMT Stencil. (Laser cut & Etching)
  • Cable assembly



Lead Time



Samples: 3-4 days

Mass Production: 7-15 days(depend on the quantity)



Payment Terms



T/T,Western Union





Packing and Shipment



Vacuum package in carton





Technical requirement for pcb assembly:



1) Professional Surface-mounting and Through-hole soldering Technology

2) Various sizes like 1206,0805,0603,0402 components SMT technology

3) ICT(In Circuit Test),FCT(Functional Circuit Test) technology.

4) PCB Assembly With UL,CE,FCC,Rohs Approval

5) Nitrogen gas reflow soldering technology for SMT.

6) High Standard SMT&Solder Assembly Line

7) High density interconnected board placement technology capacity.





Quote requirement for pcb and pcb assembly:



1) Gerber file and Bom list

2) Clear pics of pcba or pcba sample for us

3) Test method for PCBA





Why us?
Quality
Our UL(E465880)/Rohs standards insure quality assemblies from start to finish. Whether it's a simple custom product or a complex turnkey production run, JHD PCB will adhere to the highest quality standards.
Capable
JHD PCB offers the latest in assembly capabilities and qualifications insuring that quality is built into every product we produce.

Experience
When it comes to your build you want a partner you can depend on. Our management team has over 8years of combined industry knowledge. Our engineering team has over 5 years experience.

Protecting your interests
Protecting your Intellectual Property is job one! Our staff of trained professionals are all working under a strict confidentiality contract and treat your important documentation as they would their own.

Flexibility
JHD PCB prides ourselves on our ability to custom tailor programs around our customers' needs. JHD PCB takes time to listen to your unique business needs and then set out to surpass them.





Applications of Products:



1.Computers and relevant products: Movable power board, U Disk, network interface, panel computer, cameral, wire-less mouse.

2.Home appliance: smart projector/digital cameral, high-frequency board. Recorder and repeater board, auto audio equipment main board and control board.

3.Wire-less communication: mobile board,. GPS/ direction record board, wireless telephone main board, intercom main board.



4.LED Lighting: LED drive power, LED light panel, LED light belt.





JHD PCB would like to be your reliable partner in near future!
