Light Source Single Digital Gloss Meter JJG696 Standard High Precision

Light Source Single Digital Gloss Meter JJG696 Standard High Precision
Light Source Single Digital Gloss Meter JJG696 Standard High Precision Light Source Single Digital Gloss Meter JJG696 Standard High Precision

Large Image :  Light Source Single Digital Gloss Meter JJG696 Standard High Precision

Product Details:
Place of Origin: China
Brand Name: LIYI
Certification: ISO
Model Number: WG60A
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: Standard Export Wooden Case
Delivery Time: Within 15 days after receiving the payment
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability: 500 piece/month
Detailed Product Description
Measuring Range: 60°: 0-1000 Measuring Spot: 60°: 9x15
Division Value: 0-1000: 0.1 1000-2000: 1 Repeatability: 0-100:0.2 >100:0.2%
Power Adapter: Standard + 5V, 2A External Power Supply
High Light:

martindale abrasion tester

,

Paper Testing Equipment

Light Source Single Digital Gloss Meter JJG696 Standard High Precision



Product Introduction:
Quickly detail :

easuring Angle

degree

60°

20° 60° 85°

Measuring Range

GU



60°: 0-1000



20°: 0-2000

60°: 0-1000

85°: 0-160

Measuring Spot

mm



  60°: 9x15



20°: 10x10

60°: 9x15

85°: 5x18



Application:

WG60A gloss meter is produced according to the national verification regulation of JJG696 standard, adopt long life light source, good repeatability, small volume, high precision and good stability. It is mainly used on coatings, printing ink, paint, paint, wood, marble,granite, polishing brick, brick of pottery and porcelain, plastic, paper, metal and non-metallic materials. WG60A for WG60G upgrade, more stable performance, more durable, more comfortable;



Standards:

JJG696



Characteristics:

(1) One button to complete measurement: one operation can complete measurement; Measuring light incident angle meet ISO 2813 three measuring light incident angle.
(2) Manually entering standard samples gloss data;
(3) Humanized design, good man-machine communication interface;
(4) Single angle can store 10000 testing records, storage structure is: 100 prototypes, each prototype with 100 testing data;
(6) Data browsing and viewing function;
(7) The machine has automatic shutdown function, low power warning functions, full data storage hint functions;
(8) USB communication interface to communicate with PC;
(9) PC software can be extended more functions.



Specifications:

Specification

Unit

Single Gloss Meter

Triangle Gloss Meter

Measuring Angle

degree

60°

20° 60° 85°

Measuring Range

GU



60°: 0-1000



20°: 0-2000

60°: 0-1000

85°: 0-160

Measuring Spot

mm



60°: 9x15



20°: 10x10

60°: 9x15

85°: 5x18

Division Value

GU

0-1000: 0.1 1000-2000: 1

0-1000:0.1  1000-2000:1

Repeatability

GU

0-100:0.2 >100:0.2%

0-100:0.2 >100:0.2%

Indication Error

GU

±1.5

±1.5

Zero Error

GU

0.2

0.2

Working Temperature

10℃ - 40℃

10℃ - 40℃

Storage Temperature

-10℃ - 70℃

-10℃ - 70℃

Humidity Range



Relative humidity less than 85%,

without condensation

Relative humidity less than

85%, without condensation

Power Adapter



Section 2 5 alkaline batteries/

power adapter

Section 2 5 alkaline batteries/

power adapter

Volume

mm

159x49x72

159x49x72

Weight

g

500

500



Attachment Description:

(1) Power adapter: standard + 5V, 2A external power supply;
(2) Standard board: provide calibration criterion.
(3) USB cable: connect instrument to PC.

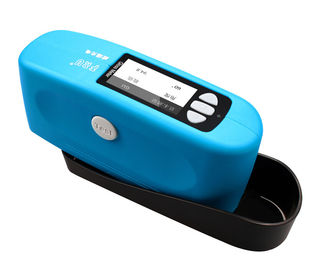

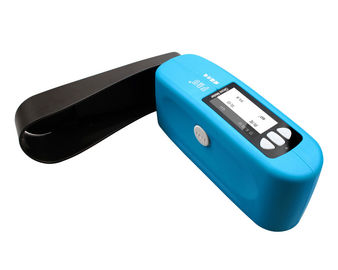

Pictures:
