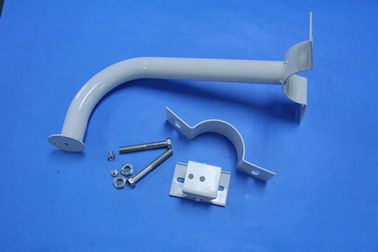

Outdoor SMD Low Bay LED Lighting With Adjustable Angle Pole For Road / Yard Lighting
Benefits
Complete unique private mold design with hundreds of projects experience, you competitor/customer can not find it from second factory in the world.
Short time payback & High ROI: 40W (140lm/W) can replace conventional 150W/250W HID high bay/down light; or 3pcs*1.2m tubes system, Retrofit Investment payback time is <8months, ROI is about 160% begin from second year.
Assembly & Installation & Maintain cost: Whole set delivery, no need more assembly cost. And only do simple Plug-in installation by one normal worker in <7m height lighting. Our LED low bay only has about 1.4kg.It save at least 50% labor cost for assembly and installation.
Lighting decay & lifespan: we use about 60% rated watt SMD soldered in about 3times bigger Hitachi PCB than normal COB PCB. It cost too much than COB, but its lighting decay/lifespan is in real warranty.
Four installation design: V62D Suspension Loop Type; V62H Track Adaptor Type; V62F IP65 Adjustable Angle Fixed Rod Type; V62G IP65 Bend Fixed Frame Type
Dali or Zigbee dimmable control system available.
Our LED low bay is for <6m lighting in retail place like supermarket/shop; office building/industrial clean warehouse etc.
FLA-SH040W V62B Suspension Loop Type Series
Features
Aluminum die and integrated compact design, one step installation, needn’t professional construction.
Five flexible installation ways, relieve product application troubles.
Just 40W, luminaries efficiency is 110Lm/W - 140Lm/ W, have more energy-saving effect.
Bright light source design provides a comfortable space lighting environment.
Simple and elegant design, made by private mold, unique, high-end atmospheric grade.
Application
The product can be applied at the height of 4-8m.
Outdoor series waterproof to IP30, suitable for damp environment.
Beam angle 90°design, exhibit a more bright and comfortable lighting environment.
5-year warranty, never worry maintenance.
Specification
|
Optical Data
|
|
LED Type
|
SMD LED
|
|
CCT
|
Incandescent White 2700k
Sun White 5000K
|
|
System Efficacy
|
110-140 Lm/W
|
|
Beam Angle
|
90°
|
|
Electrical Data
|
|
Power Supply
|
Self-developed power supply
|
|
Input Voltage
|
AC100-240V/50~60 Hz
|
|
Efficiency
|
≥90%
|
|
Power Factor
|
≥0.95
|
|
Total Harmonic Distortion
|
≤15%
|
|
Others
|
|
Fixture Material
|
Aluminum(UV coating)
PC(UV protection lamp lens)
|
|
Safety Standard
|
Class II
|
|
Ingress Protection
|
IP30
|
|
Life span
|
>5 year
|
|
Ambient Temp. (℃)
|
-20℃~40℃
|
|
Storage Temp. (℃)
|
-40℃~65℃
|
|
Dimension(A*B*C)(mm)
|
191*325*140
|
|
Approvals
|
|
|
IEC: 60598-1:2008
IEC: 60598-2-4:1997
IEC: 62031:2008
IEC: 62471:2006
IEC: 62471-2:2009
|
|
EAN CODE
|
Item Model
|
CCT(K)
|
Cover type
|
Lumen(Lm)
|
CRI(%)
|
N.W.(KG)
|
|
| |
|
6925907980122
|
Low Bay FLA-SH040W Q62D
|
Incandescent White 2700k
|
Frosted
|
4600Lm
|
＞80%
|
1.2KG
|
|
|
6925907980115
|
Low Bay FLA-SH040W V62D
|
Sun White 5000K
|
5600Lm
|
＞80%
|
|
Installation
For whole set delivery, you only need to do AC connection for installation.
Our fixture is compact and lightweight, normal one electrician/worker can do installation easily.
Packing:
Single package
|
Item Model
|
Qty/CTN
|
G . W
|
Size of Carton (cm)
|
|
Low Bay FLA-SH040W
|
1pcs
|
1.45Kg
|
31.5*31.5*14.5
|
|
Low Bay FLA-SH040W
|
5pcs
|
8.4Kg
|
83.5*32.5*32.5
|
Standard package: pallet package
|
Item Model
|
Qty/CTN
|
G.W
|
Size of Carton(cm)
|
|
Low Bay FLA-SH040W
|
120 Pcs
|
206.1Kg
|
100.5*132*182
|
